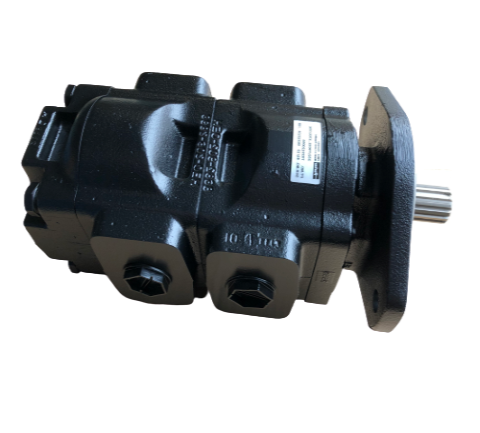

20/925340 Genuine Parker / JCB 3CX Twin Hydraulic Pump 41 + 26 CC/REV - Unwin Hydraulic Engineering
Parker Hannifin

20/907600 Genuine Parker / JCB 3CX Twin Hydraulic Pump 7029121119

$1,582.00 ex VAT$2,133.00 $1,898.40 inc VAT$2,559.60$1,898.40 inc VAT $1,582.00 ex VAT

Only 4 left in stock

Collection from our Derbyshire HQ by arrangement

Need 10+ or a bulk price? Request a quote

Delivery price

Live courier prices — the same as you'll see at checkout.

  • Order by 1pm for same-day dispatch (subject to stock availability)
  • Up to 50% saving against OEM parts
  • Technical support from our hydraulic engineers
Not sure it's the right part?

Our engineers will check it fits before you order.

01283 817 920
Key Information
  • Rotation: Clockwise (looking from shaft end)
  • 1” Diameter 15 tooth SAE splined shaft 16/32 Pitch
  • SAE B 2 hole mounting flange
  • Front pump displacement: 41 cc/rev (41L/Min per 1000 rpm)
  • Rear pump displacement: 26 cc/rev (26L/Min per 1000 rpm)
  • Single 2” SAE flange inlet
  • Front pump outlet: 1 1/16”-12 UNF threaded
  • Rear pump outlet: 7/8”-14 UNF threaded
  • Maximum working pressure on front pump: 250 bar
  • Maximum working pressure on rear pump: 275 bar
  • Max. Input shaft torque: 460 Nm

Replaces the following JCB part numbers

  • 20/907600 - 7029120007

Weight

  • 26KG

Machine Fitment

JCB414S
