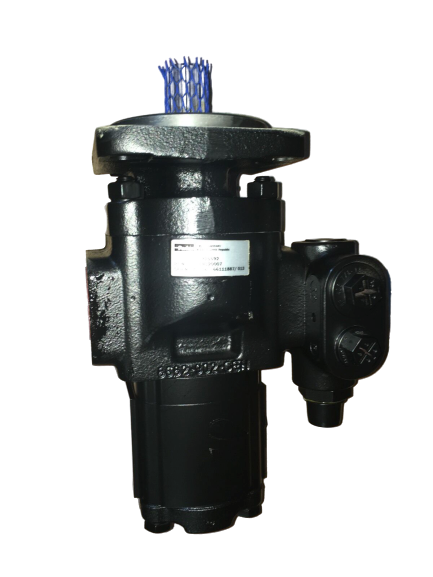

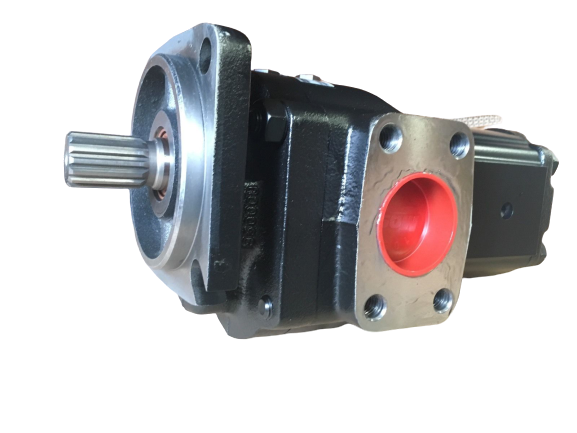

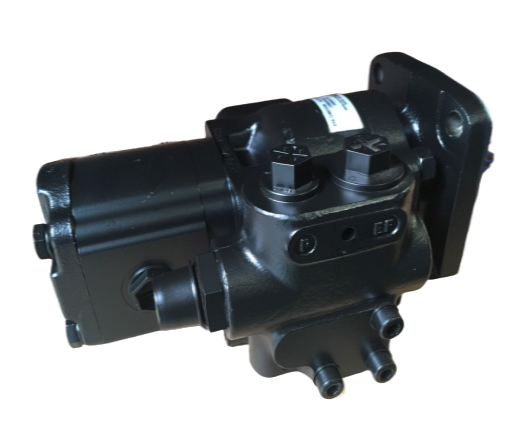

20/925357 Genuine Parker / JCB Loadall Twin Hydraulic Pump 36 +16 CC/REV - Unwin Hydraulic Engineering
20/925357 Genuine Parker / JCB Loadall Twin Hydraulic Pump 36 +16 CC/REV - Unwin Hydraulic Engineering
20/925357 Genuine Parker / JCB Loadall Twin Hydraulic Pump 36 +16 CC/REV - Unwin Hydraulic Engineering
Parker Hannifin

20/925308 Genuine Parker / JCB Loadall Twin Hydraulic Pump + LSPV (JCB 20/950883)

$948.00 ex VAT$2,045.00 $1,137.60 inc VAT$2,454.00$1,137.60 inc VAT $948.00 ex VAT

In stock

Collection from our Derbyshire HQ by arrangement

Need 10+ or a bulk price? Request a quote

Delivery price

Live courier prices — the same as you'll see at checkout.

  • Order by 1pm for same-day dispatch (subject to stock availability)
  • Up to 50% saving against OEM parts
  • Technical support from our hydraulic engineers
Not sure it's the right part?

Our engineers will check it fits before you order.

01283 817 920
Key Information
  • Rotation: Counter-Clockwise (looking from shaft end)
  • 1” Diameter 15 tooth SAE spline 16/32 Pitch
  • SAE B 4 hole mounting flange
  • Front pump displacement: 36 cc/rev (33L/Min per 1000 rpm)
  • Rear pump displacement: 16 cc/rev (29L/Min per 1000 rpm)
  • Combined 2” SAE flange inlet
  • Maximum working pressure on front pump: 250 bar
  • Maximum working pressure on rear pump: 275 bar
  • Max. Input shaft torque: 325 Nm
  • Comes complete with LS priority valve  (JCB 20/950883)

Replaces the following JCB part numbers

  • 20/925308   20/925357   20/925592

Weight

  • 18KG

Machine Fitment

  • PUMP (TWO STAGE) MAIN HYDRAULICS 535-95 DUTCH MILITARY 9812/7025
  • PUMP (TWO STAGE) MAIN HYDRAULICS 540S XL 9802/7020
  • PUMP (TWO STAGE) MAIN HYDRAULICS 530 SUPER 9802/7020
  • PUMP (TWO STAGE) MAIN HYDRAULICS 540 FS PLUS 9802/7020
  • PUMP (TWO STAGE) MAIN HYDRAULICS 540 SUPER 9802/7020
  • PUMP (TWO STAGE) MAIN HYDRAULICS 540 SWAY 9802/7040
  • PUMP (TWO STAGE) MAIN HYDRAULICS 530 9802/7040
  • PUMP (TWO STAGE) MAIN HYDRAULICS 530S XL 9802/7020
  • PUMP (TWO STAGE) MAIN HYDRAULICS 540 9802/7040
  • PUMP (TWO STAGE) MAIN HYDRAULICS 530 SWAY 9802/7040
  • PUMP (TWO STAGE) MAIN HYDRAULICS 530 FS PLUS 9802/7020
  • PUMP (TWO STAGE) MAIN HYDRAULICS 530S XL 9802/7960
  • PUMP (TWO STAGE) MAIN HYDRAULICS 535-95 SWAY 9802/7880
  • PUMP (TWO STAGE) MAIN HYDRAULICS 530 FS PLUS 9802/7960
  • PUMP (TWO STAGE) MAIN HYDRAULICS 533-105 9802/7880
  • PUMP (TWO STAGE) MAIN HYDRAULICS 9802/7880
  • PUMP (TWO STAGE) MAIN HYDRAULICS 535-95 SWAY 9802/7060
  • PUMP (TWO STAGE) MAIN HYDRAULICS 535-95 FS PLUS 9802/7060
  • PUMP (TWO STAGE) MAIN HYDRAULICS 530 SUPER AG 9802/7960
  • PUMP (TWO STAGE) MAIN HYDRAULICS 533-105 9802/7060
  • PUMP (TWO STAGE) MAIN HYDRAULICS 535-95 FS 9802/7060
  • PUMP (TWO STAGE) MAIN HYDRAULICS 535-95 9802/7060
  • PUMP (TWO STAGE) MAIN HYDRAULIC 530 LE 9802/7850
  • PUMP (TWO STAGE) MAIN HYDRAULIC 530 LE SWAY 9802/7850
