Parker Hannifin

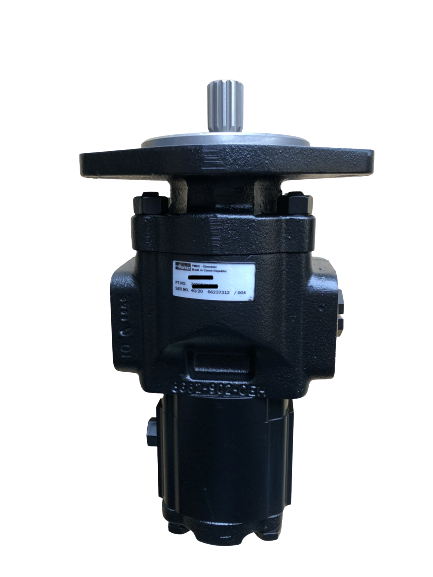

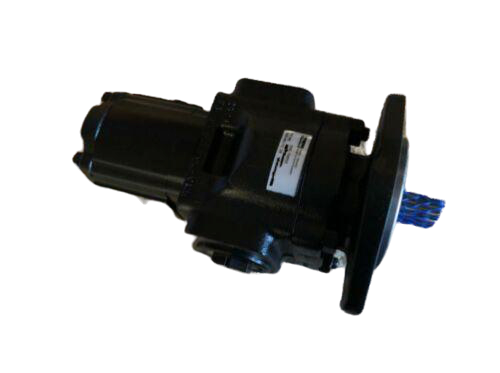

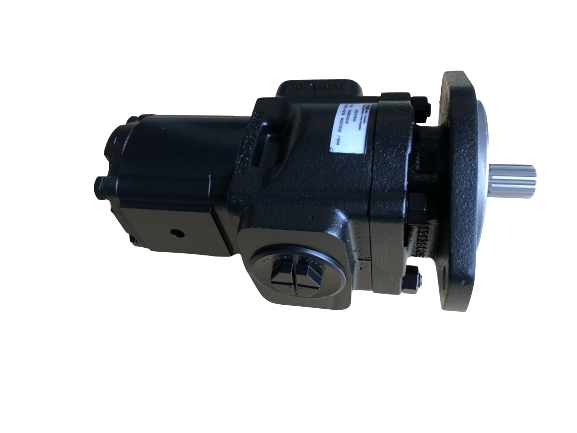

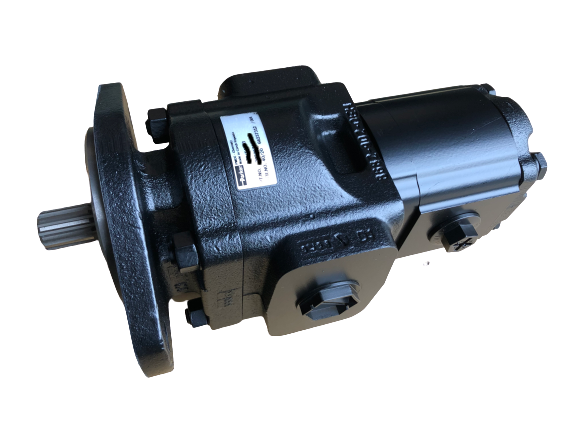

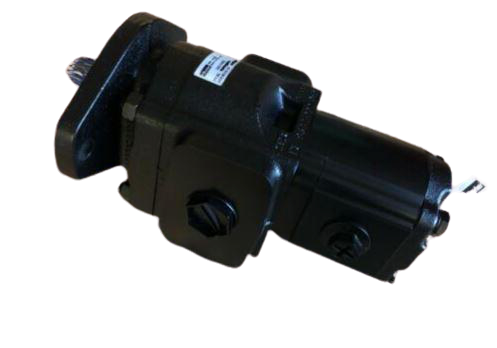

20/925498 Genuine Parker / JCB 524 /527 Twin Hydraulic Pump 7029521008

$881.00 ex VAT$1,657.00 $1,057.20 inc VAT$1,988.40$1,057.20 inc VAT $881.00 ex VAT

In stock

Collection from our Derbyshire HQ by arrangement

Need 10+ or a bulk price? Request a quote

Delivery price

Live courier prices — the same as you'll see at checkout.

  • Order by 1pm for same-day dispatch (subject to stock availability)
  • Up to 50% saving against OEM parts
  • Technical support from our hydraulic engineers
Not sure it's the right part?

Our engineers will check it fits before you order.

01283 817 920

Key Information

  • Rotation: Clockwise (looking from shaft end)
  • 7/8” Diameter 13T SAE B splined shaft
  • SAE B 2 hole mounting flange
  • Front Pump displacement: 37 cc/rev (37L/Min per 1000 rpm)
  • Rear Pump displacement: 16 cc/rev (14L/Min per 1000 rpm)
  • 1 7/8" UNF threaded inlet
  • Front pump 1 1/16" UNF threaded outlet
  • Rear pump 7/8" UNF threaded outlet

Replaces the following JCB part numbers

  • 20/925498

Weight

  • 16KG

Machine Fitment

  • REAR TOW HITCH HYDRAULIC CIRCUIT 524-50 Tier 2 9812/7210
  • REAR TOW HITCH HYDRAULIC CIRCUIT 527-55S 9802/7220
  •  REAR TOW HITCH HYDRAULIC CIRCUIT 527-55 9802/7220
  • REAR TOW HITCH HYDRAULIC CIRCUIT 527-55S Tier 2 9812/7210
  • REAR TOW HITCH HYDRAULIC CIRCUIT 524-50 9802/7220
  • REAR TOW HITCH HYDRAULIC CIRCUIT 527-55 Tier 2 9812/7210
  • TOW HITCH HYDRAULIC CIRCUIT 524-50 9802/7220
  • TOW HITCH HYDRAULIC CIRCUIT 527-55S 9802/7220
  • TOW HITCH HYDRAULIC CIRCUIT 527-55S Tier 2 9812/7210
  • TOW HITCH HYDRAULIC CIRCUIT 524-50 Tier 2 9812/7210
  • TOW HITCH HYDRAULIC CIRCUIT 527-55 9802/7220
  • TOW HITCH HYDRAULIC CIRCUIT 527-55 Tier 2 9812/7210
  • TOW HITCH MANUAL CIRCUIT 527-55 Tier 2 9812/7210
  • TOW HITCH MANUAL CIRCUIT 527-55 9802/7220
  • TOW HITCH MANUAL CIRCUIT 527-55S Tier 2 9812/7210
  • TOW HITCH MANUAL CIRCUIT 527-55S 9802/7220
  • TOW HITCH MANUAL CIRCUIT 524-50 Tier 2 9812/7210
  • TOW HITCH MANUAL CIRCUIT 524-50 9802/7220
  • PUMP,GEAR,TANDEM 524-50 Tier 2 9812/7210
  • PUMP,GEAR,TANDEM 527-55S 9802/7220
  • PUMP,GEAR,TANDEM 527-55S Tier 2 9812/7210
  • PUMP,GEAR,TANDEM 527-55 Tier 2 9812/7210
  • PUMP,GEAR,TANDEM 524-50 9802/7220
  • PUMP,GEAR,TANDEM 527-55 9802/7220
