Parker Hannifin

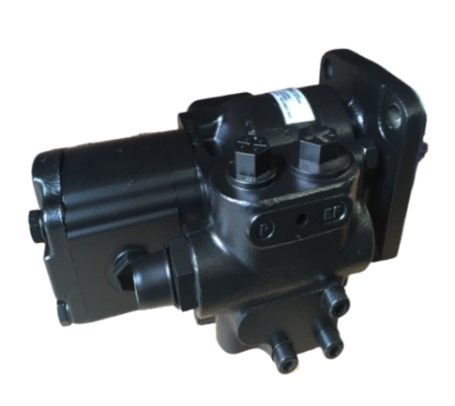

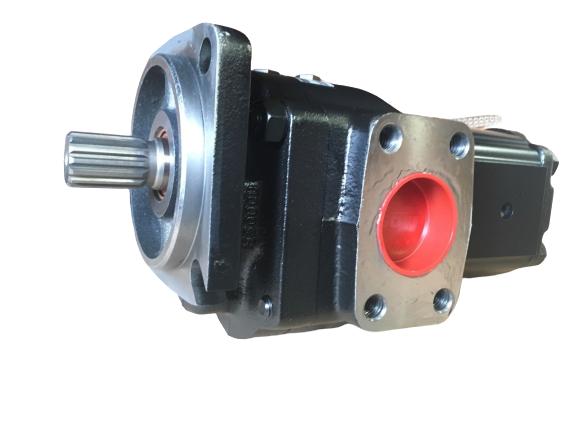

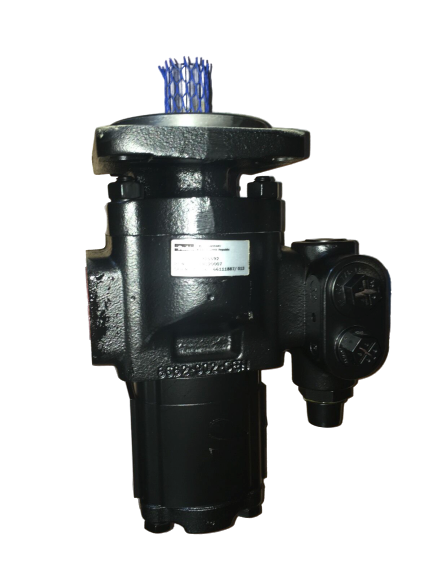

20/925592 Genuine Parker / JCB Loadall Twin Hydraulic Pump 36 +16 CC/REV

20/925592 Genuine Parker / JCB Loadall Twin Hydraulic Pump 36 +16 CC/REV

32 in stock

Regular price $922.17 USD
Regular price $1,986.62 USD Sale price $922.17 USD
Sale Sold out

PRICE EXCL. VAT

Looking for a pump to fit a specific machine? Click here. Alternatively, enter your machine number or OEM part number into the search bar above.
  • Worldwide shipping via trusted and reliable couriers.
  • Huge savings against OEM parts.
  • Need assistance? Contact our expert sales team.
Key Information
  • Rotation: Counter-Clockwise (looking from shaft end)
  • 1” Diameter 15 tooth SAE spline16/32 Pitch
  • SAE B 4 hole mounting flange
  • Front pump displacement: 36 cc/rev (33L/Min per 1000 rpm)
  • Rear pump displacement: 16 cc/rev (16L/Min per 1000 rpm)
  • Combined 2” SAE flange inlet
  • Maximum working pressure on front pump: 250 bar
  • Maximum working pressure on rear pump: 275 bar
  • Max. Input shaft torque: 325 Nm
  • Comes complete with LS priority valve

Replaces the following JCB part numbers

  • 20/925357- 20/925592 - 7029

Weight

  • 18KG

Machine Fitment

  • NEUTRAL CIRCUIT,LCS FIXED 2 STAGE PUMP WITH TRAILER BRAKES,AUSTRALIA & NZ 531-70 Tier 3 9812/7300
  • NEUTRAL CIRCUIT,LCS FIXED 2 STAGE PUMP WITH TRAILER BRAKES,AUSTRALIA & NZ 536-70 9812/7075
  • NEUTRAL CIRCUIT,LCS FIXED 2 STAGE PUMP WITH TRAILER BRAKES,AUSTRALIA & NZ 541-70 Tier 3 9812/7300
  • PUMP,(TWO STAGE) MAIN HYDRAULICS 80 L/MIN 533-105 Tier 2 9812/7000
  • PUMP,(TWO STAGE) MAIN HYDRAULICS 80 L/MIN 535-95 SWAY Tier 2 9812/7000
  • PUMP,(TWO STAGE) MAINH HYDRAULICS 80 L/MIN 536-70 9812/7075
  • PUMP,(TWO STAGE) MAIN HYDRAULICS 80 L/MIN 533-105 Tier 3 9812/7085
  • PUMP,(TWO STAGE) MAIN HYDRAULICS 80 L/MIN 541-70 Tier 3 9812/7300
  • PUMP,(TWO STAGE) MAIN HYDRAULICS 80 L/MIN 531-70 TIER 2 9812/7060
  • PUMP,(TWO STAGE) MAIN HYDRAULICS 80 L/MIN 535-95 Tier 3 9812/7085
  • PUMP,(TWO STAGE) MAIN HYDRAULICS 80 L/MIN 535-95 Tier 2 9812/7000
  • PUMP,(TWO STAGE) MAIN HYDRAULICS 80 L/MIN 535-95 MILITARY 9812/7280
  • PUMP,(TWO STAGE) MAINH HYDRAULICS 80 L/MIN .536-70 9812/7075
  • PUMP,(TWO STAGE) MAIN HYDRAULICS 80 L/MIN 541-70 TIER 2 9812/7060
  • PUMP,(TWO STAGE) MAIN HYDRAULICS 80 L/MIN 541-70 SWAY TIER 2 9812/7060
  • PUMP,(TWO STAGE) MAIN HYDRAULICS 80 L/MIN 531-70 Tier 3 9812/7300
  • PUMP/MOTOR & PUMP DRIVE 526-56 9812/7350
  • PUMP,(TWO STAGE) MAIN HYDRAULICS 80 L/MIN 531-70 SWAY TIER 2 9812/7060
  • PUMP,(TWO STAGE) MAIN HYDRAULICS FITTINGS & MOUNTINGS 526-56 9812/7350
  • PUMP/MOTOR INSTALLATION ASSEMBLIES 2 STAGE, 80L/MIN 533-105 9822/0575
  • PUMP/MOTOR INSTALLATION ASSEMBLIES 80 L/Min 2 STG 14/06/2015 526-56 9822/0090
  • PUMP/MOTOR INSTALLATION ASSEMBLIES 2 STAGE, 80L/MIN 535-95 9822/0575
  • PUMP/MOTOR INSTALLATION ASSEMBLIES 2 STAGE 531-70WM 9822/0090
  • PUMP/MOTOR INSTALLATION ASSEMBLIES 2 STAGE 541-70WM ALL 541-70 MODELS 9822/0090
  • PUMP/MOTOR INSTALLATION ASSEMBLIES 2 STAGE 536-70AG+ 9822/0090
  • PUMP/MOTOR INSTALLATION ASSEMBLIES PUMP 2 STAGE 10/04/2016 536-70AG+ 9822/0090
  • PUMP/MOTOR INSTALLATION ASSEMBLIES PUMP 2 STAGE 526-56 9822/0090
  • PUMP/MOTOR INSTALLATION ASSEMBLIES PUMP 2 STAGE 10/04/2016 541-70WM ALL 541-70 MODELS 9822/0090
  • PUMP/MOTOR INSTALLATION ASSEMBLIES PUMP 2 STAGE 10/04/2016 531-70WM 9822/0090
