David Brown

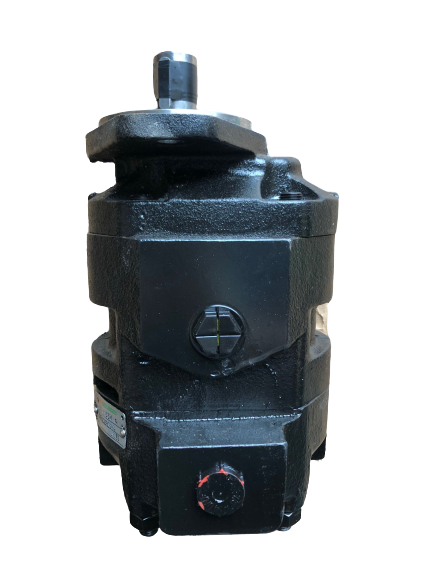

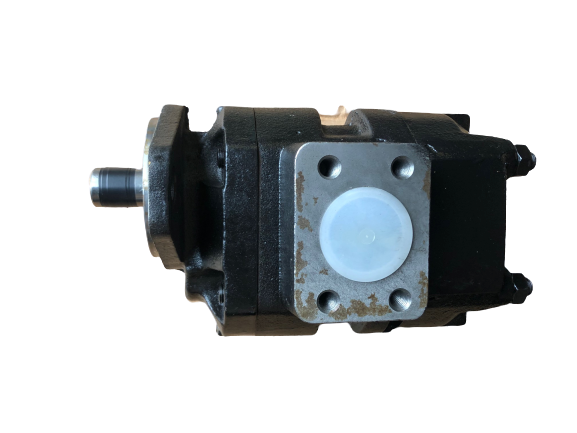

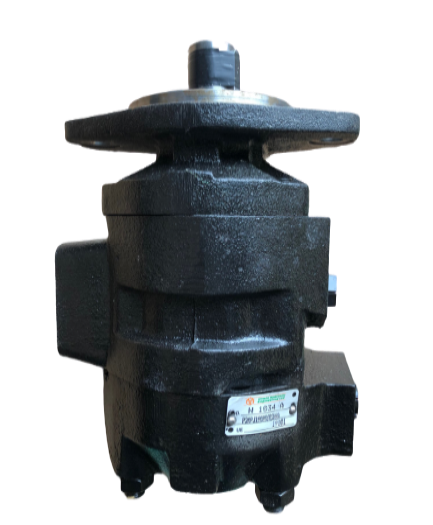

919/71700 JCB Twin Hydraulic Pump

$1,231.00 ex VAT$1,775.00 $1,477.20 inc VAT$2,130.00$1,477.20 inc VAT $1,231.00 ex VAT

Out of stock — ask about lead time

Collection from our Derbyshire HQ by arrangement

Need 10+ or a bulk price? Request a quote

Delivery price

Live courier prices — the same as you'll see at checkout.

  • Order by 1pm for same-day dispatch (subject to stock availability)
  • Up to 50% saving against OEM parts
  • Technical support from our hydraulic engineers
Not sure it's the right part?

Our engineers will check it fits before you order.

01283 817 920
*** Please see also 20/911200KIT ( Parker pump + Universal Joint kit ) ***
Key Information
  • Rotation: Counter-Clockwise (looking from shaft end)
  • 1.125"” Diameter parallel keyed shaft (28.8mm)
  • SAE B 2 hole mounting flange
  • Front pump displacement: 41 cc/rev (33L/Min per 1000 rpm)
  • Rear pump displacement: 29 cc/rev (29L/Min per 1000 rpm)
  • Combined 2” SAE flange inlet
  • Front pump outlet: 3/4" BSPP threaded
  • Rear pump outlet: 5/8" BSPP threaded
  • Maximum working pressure on front pump: 240 bar
  • Maximum working pressure on rear pump: 275 bar
  • Max. Input shaft torque: 325 Nm

Replaces the following JCB part numbers

  • 919/66700 - 919/66800 - 919/66900
  • 919/71400 - 919/71500 - 919/71700

Weight

  • 31KG

Machine Fitment

  • PUMP, MAIN HYDRAULIC CODE 4072 M 3CX (CM) Centremount AA AB Engine 9802/9720
  • PUMP, MAIN HYDRAULIC CODE 4072 GEAR PUMP 3CX Sideshift AA AB Engine 9802/9730
  • PUMP, MAIN HYDRAULIC CODE 4072 GEAR PUMP 3CXSM Sideshift AA AB Engine 9802/9730
  • PUMP, MAIN HYDRAULIC CODE 4072 GEAR PUMP 3CX CONTRACTOR Sideshift AA AB Engine 9802/9730
  • PUMP, MAIN HYDRAULIC CODE 4072 GEAR PUMP 3CX444 SUPER Sideshift AA AB Engine 9802/9730
  • PUMP, MAIN HYDRAULIC M410964 4C 30 9802/9600
  • PUMP, MAIN HYDRAULIC M410964 3CXT 30 Sideshift 9802/9600
  • PUMP, MAIN HYDRAULIC M410964 4C 35 9802/9600
  • PUMP, MAIN HYDRAULIC M410964 4CN 30 9802/9600
  • PUMP, MAIN HYDRAULIC 4CN 9802/9700
  • PUMP, MAIN HYDRAULIC 3CX 9802/9700
  • PUMP, MAIN HYDRAULIC M410964 3CXHMT 30 Sideshift 9802/9600
  • PUMP, MAIN HYDRAULIC M410964 3CXSMT 35 Sideshift 9802/9600
  • PUMP, MAIN HYDRAULIC 4C 9802/9700
  • PUMP, MAIN HYDRAULIC M410964 3CXT 20 Sideshift 9802/9600
  • PUMP, MAIN HYDRAULIC M410964 3CXHMT 35 Sideshift 9802/9600
  • PUMP, MAIN HYDRAULIC M410964 4CN 35 9802/9600
  • PUMP, MAIN HYDRAULIC M410964 3CXSMT 30 Sideshift 9802/9600
  • PUMP, MAIN HYDRAULIC 3CX4M Military Sideshift 9802/9709
  • PUMP, MAIN HYDRAULIC M410964 3CXT 35 Sideshift 9802/9600
  • PUMP, MAIN HYDRAULIC 3CXSM 9802/9700
  • PUMP, MAIN HYDRAULIC M410964 3CXSMT 20 Sideshift 9802/9600
