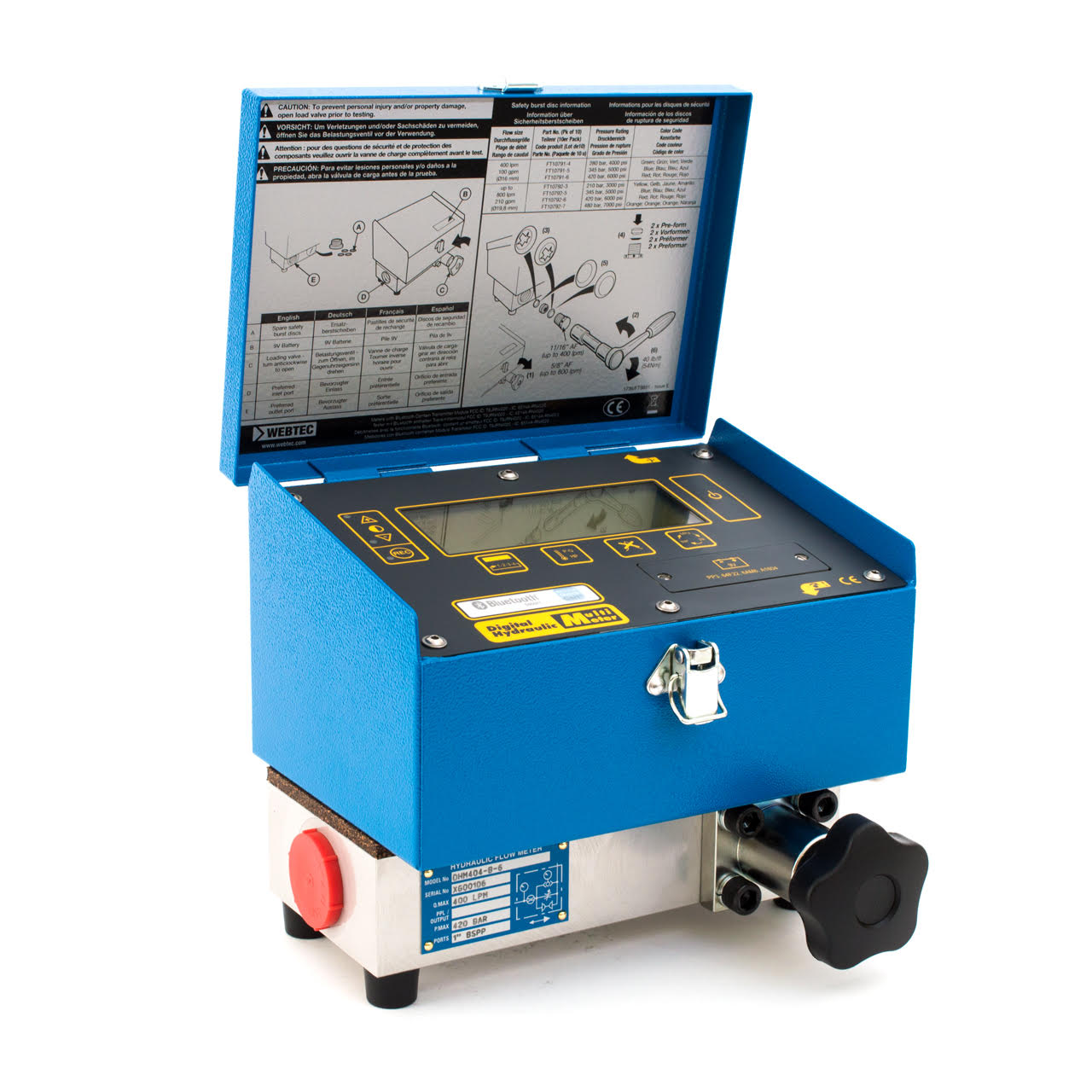

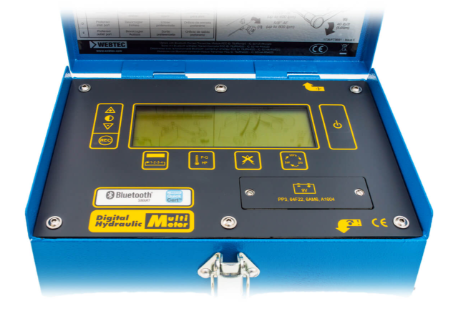

Webtec DHM804-S-7-L Digital Hydraulic Multimeter

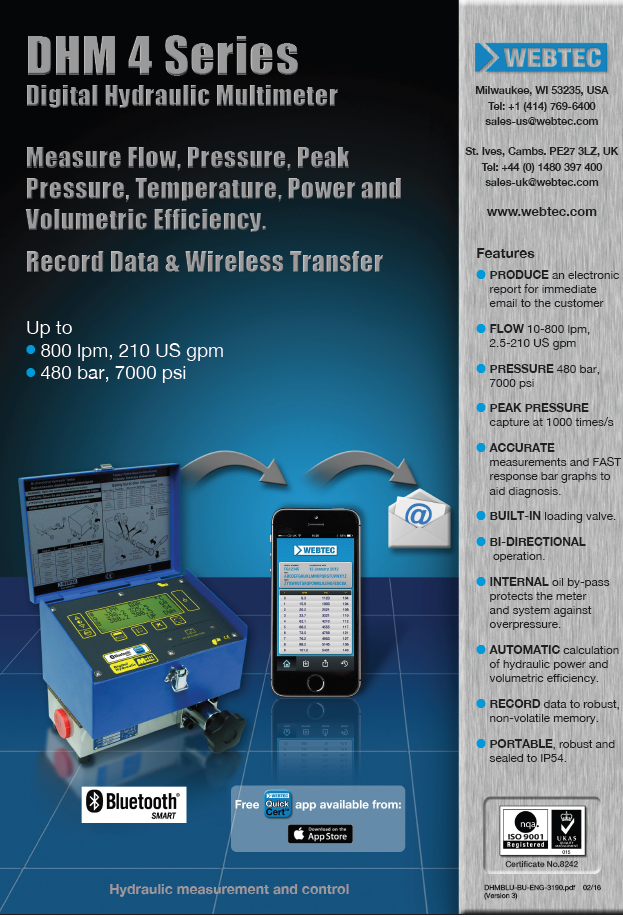

The Webtec DHM804-S-7-L is a high-capacity digital hydraulic multimeter designed for demanding industrial and mobile hydraulic systems. Calibrated for UK litres per minute, it delivers precise, simultaneous measurement of flow, pressure, and temperature — giving engineers a complete picture of system performance in a single instrument.

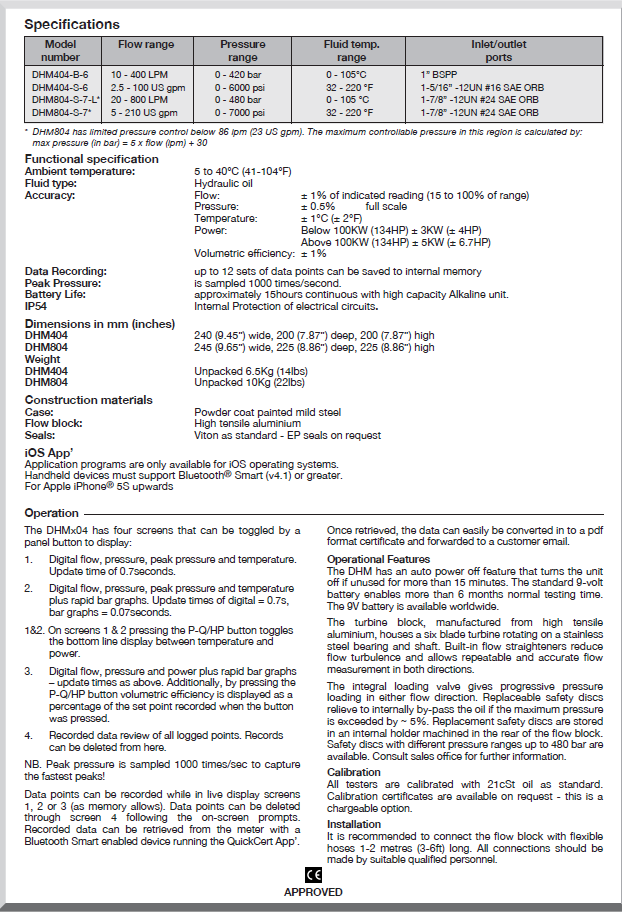

Key Specifications
- Flow range: Up to 800 lpm (210 US gpm)
- Pressure rating: Up to 480 bar (7,000 psi)
- Port size: 1 7/8" – 12 UNF
- Calibration: UK litres per minute
- Data recording: QuickCert onboard data logging with wireless transfer
What It Measures
- Flow rate
- System pressure
- Fluid temperature
- Hydraulic power
- Volumetric efficiency
Why Choose the DHM804-S-7-L?
When you need to diagnose high-flow hydraulic circuits quickly and accurately, the DHM804-S-7-L delivers. Its QuickCert data recording capability means test results can be logged and transferred wirelessly — ideal for service engineers producing calibration certificates or fault reports on site. Built by Webtec, a trusted name in hydraulic test and measurement, this unit is engineered for reliability in the field.
Ideal For
- High-flow industrial hydraulic systems
- Mobile plant and heavy machinery
- Hydraulic system commissioning and fault diagnosis
- Service engineers requiring on-site data capture and reporting
Full specifications are available on request.
