Parker Sensocontrol SCJN-KIT-016 Service Junior Pressure Test Gauge kit
Parker Sensocontrol SCJN-KIT-016 Service Junior Pressure Test Gauge kit
Parker

Parker Sensocontrol SCJN-KIT-016 Service Junior Pressure Test Gauge kit

$407.00 ex VAT$682.00 $488.40 inc VAT$818.40$488.40 inc VAT $407.00 ex VAT

Only 3 left in stock

Collection from our Derbyshire HQ by arrangement

Need 10+ or a bulk price? Request a quote

Delivery price

Live courier prices — the same as you'll see at checkout.

  • Order by 1pm for same-day dispatch (subject to stock availability)
  • Up to 50% saving against OEM parts
  • Technical support from our hydraulic engineers
Not sure it's the right part?

Our engineers will check it fits before you order.

01283 817 920

0-16 Bar range reading range . Max input pressure 32 Bar

Service Junior Accuracy ± 0.1 % FS to ± 0.5 % FS

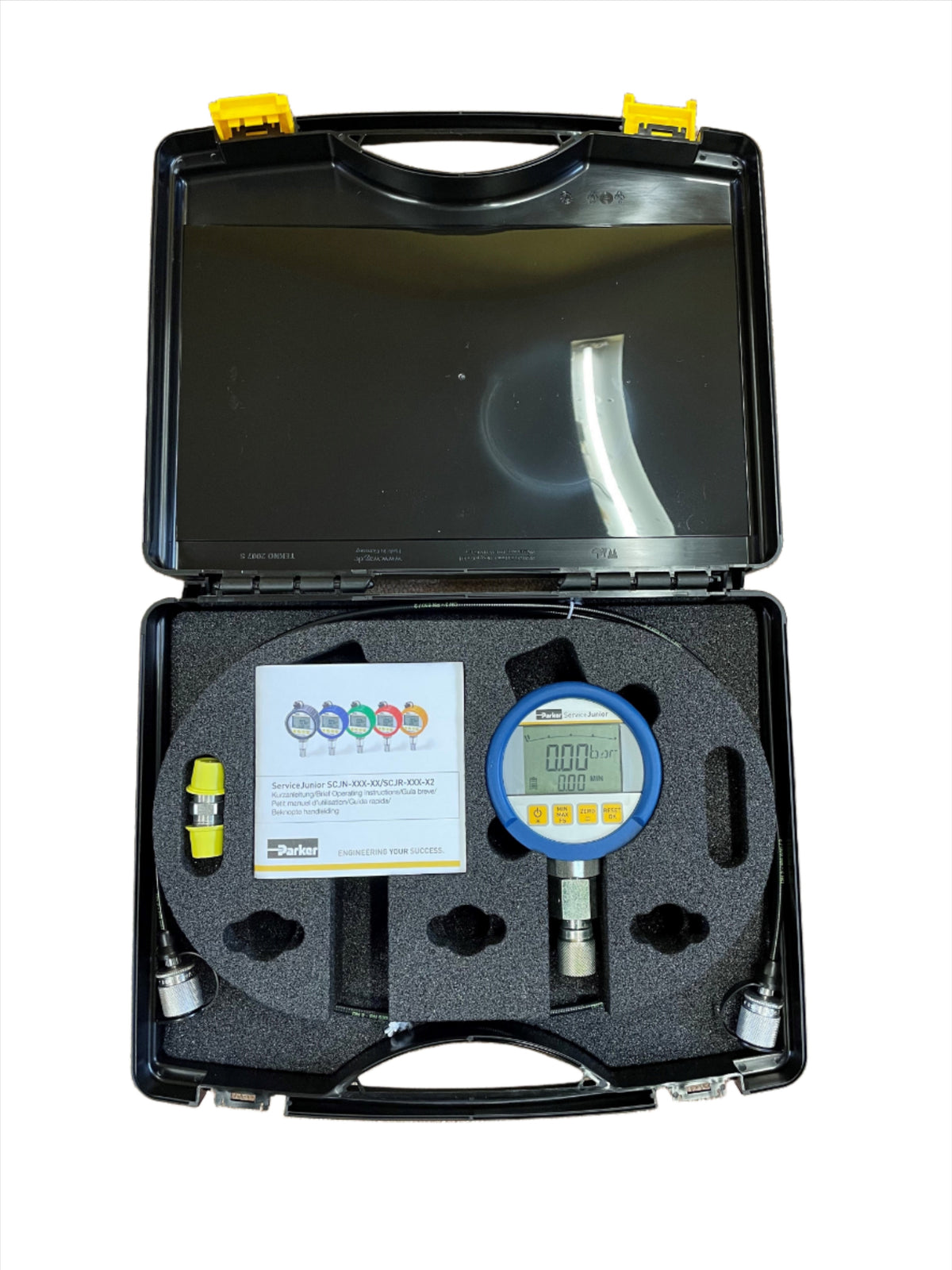

Kit Comprises;

* SCJN-016-01 Junior Sensocontrol gauge 44092642

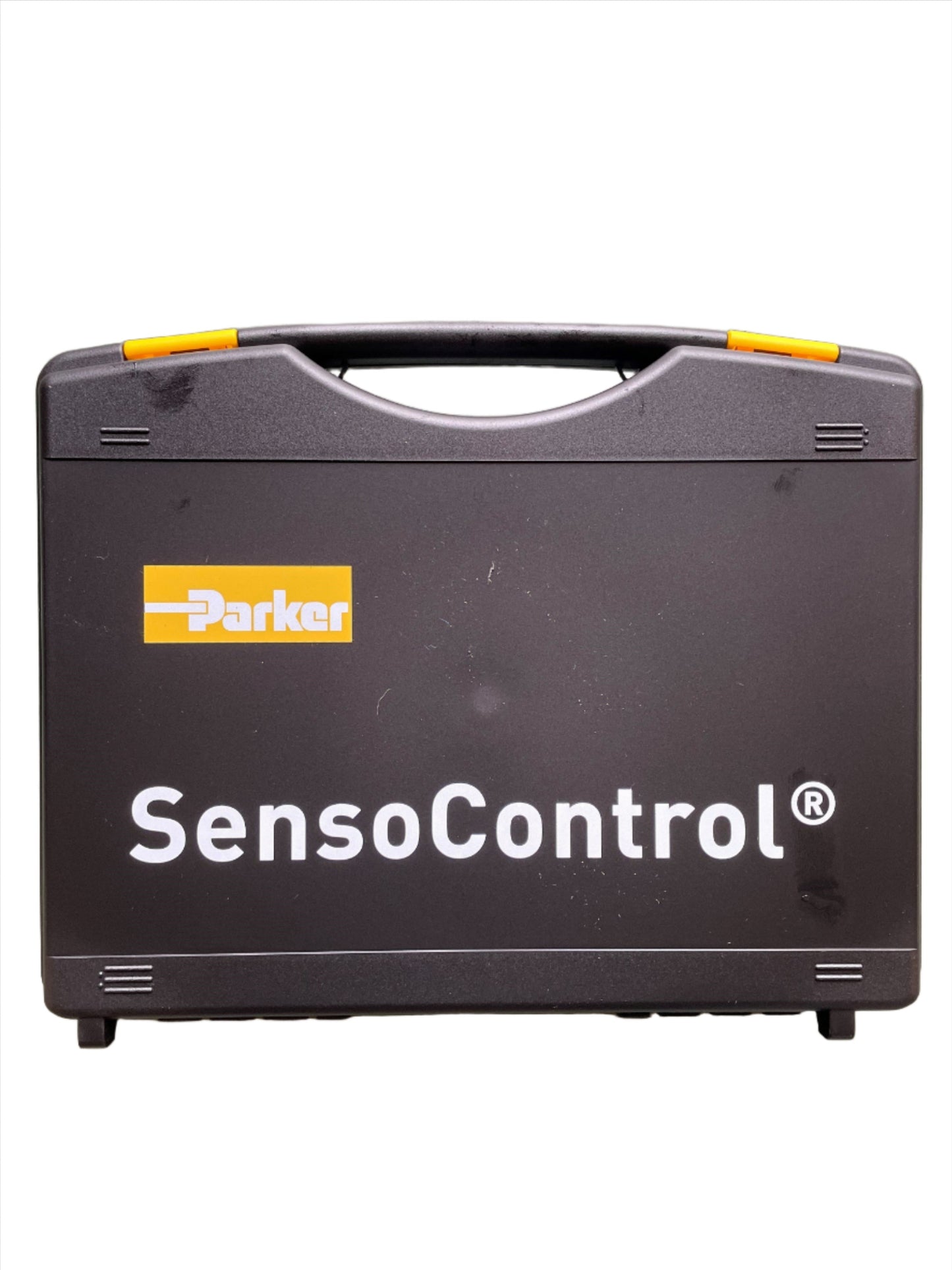

*Equipment case SCC-120 (USA case SCC-300)

 *ServiceJunior SCJN-xxx-x1 (0.5%) incl. adapter (1/4” BSPP female - M16x2 female) SCA-1/4-EMA-3CF

*Adapter (M16x2 male - M16x2 male) SCA-EMA-3/3

*Measuring hose 1,500 mm (M16x2) SMA3-1500CF

The ServiceJunior measures, displays and stores pressures in a single device. It features an extremely robust design in a metal housing and is easy to operate. Accurate measurements over a wide pressure range usually require multiple mechanical gauges. Due to the high accuracy, resolution and long-term stability as well as the 4 1/2-digit display, the ServiceJunior performs this task with only one instrument.
Pressure peaks are reliably detected with a sampling rate of 10 ms. Using the MIN-/MAX function, the minimum and maximum pressure is automatically stored and can be called up at the push of a button



Markets:
• Industrial Equipment & Products
• Mining
• Off-Highway Mobile Equipment
• Transportation
• Marine/Offshore
• Power Generation

Features/Benefits:
• Extremely robust and reliable due to metal housing
• One-button recording eliminates the need for complex calculations and tedious configurations
• Memory optimization through automatic data compression
• Suitable for measuring hydraulic and pneumatic system pressures

Applications:
• Maintenance and service
• Pressure test
• Leakage test
• Monitoring and commissioning
• Quality assurance and laboratory
