Parker Hannifin

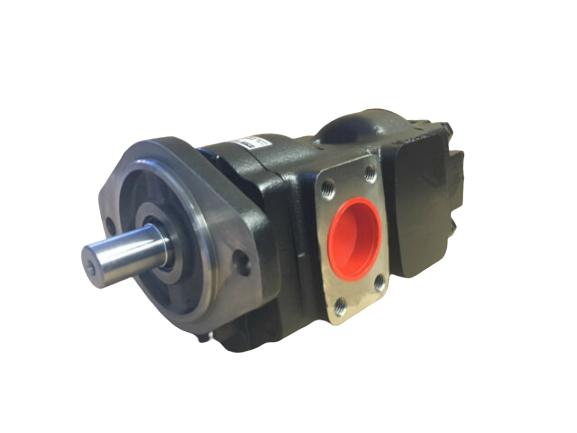

20/903200KIT Genuine Parker/JCB 3CX Twin Hydraulic Pump 41 + 29 CC/REV

20/903200KIT Genuine Parker/JCB 3CX Twin Hydraulic Pump 41 + 29 CC/REV

Low stock: 2 left

Regular price $1,037.55 USD
Regular price $2,236.68 USD Sale price $1,037.55 USD
Sale Sold out

PRICE EXCL. VAT

Looking for a pump to fit a specific machine? Click here. Alternatively, enter your machine number or OEM part number into the search bar above.
  • Worldwide shipping via trusted and reliable couriers.
  • Huge savings against OEM parts.
  • Need assistance? Contact our expert sales team.

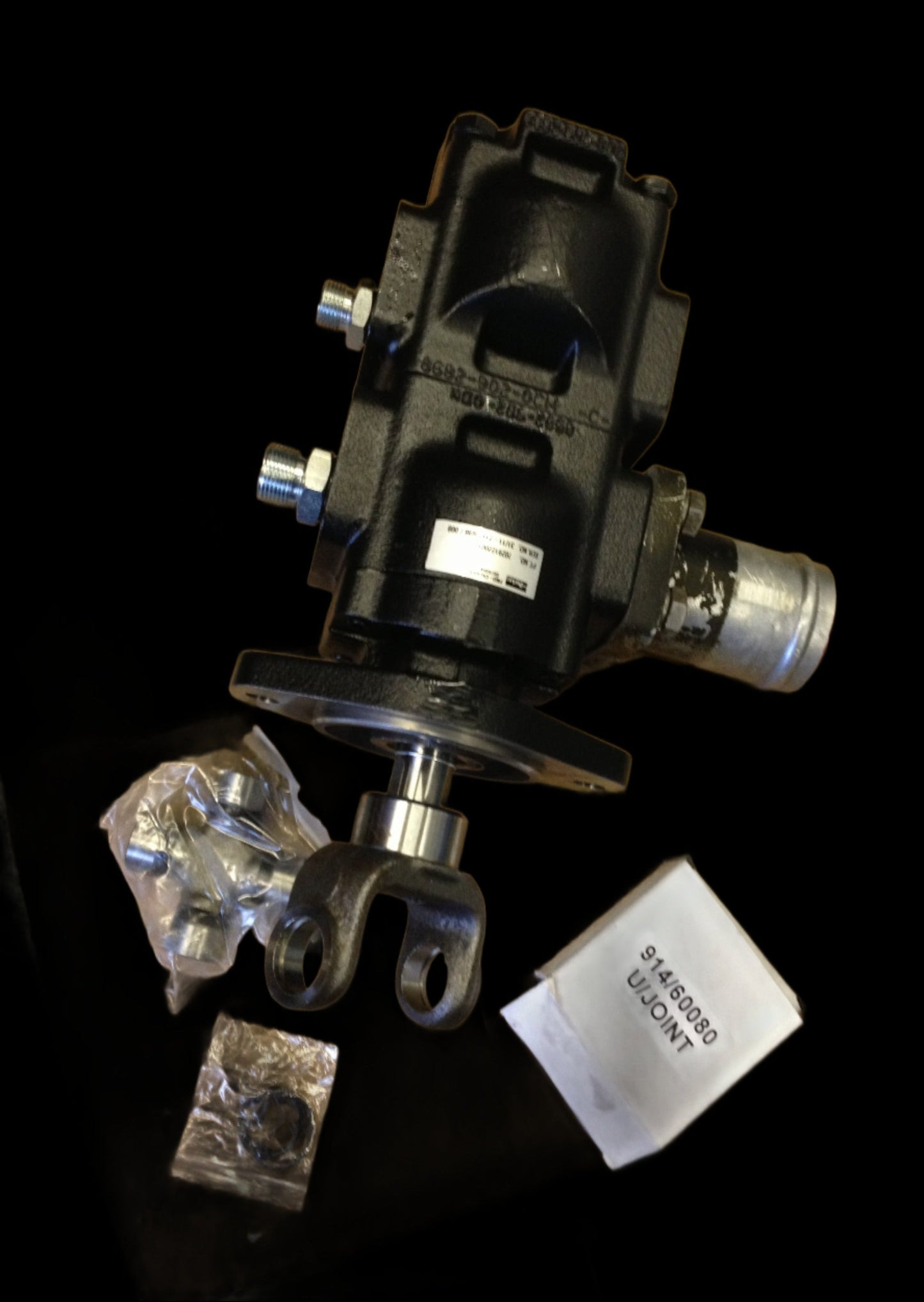

Kit to replace old Grey cab pumps  919/66700 -919/71700
Includes Universal Joint Coupling Half  + New circlips + UNF-BSP Fittings ( Note Suction flange NOT included this is to be reused )
This Kit replaces the older grey cab Hamworthy/David Brown hydraulic pump for the latest Parker pump  - it is noticeably smoother and quieter running and gives considerable NVH benefits (Noise, Vibration and Harshness ) for the operator.
Key Information
  • Rotation: Counter-Clockwise (looking from shaft end)
  • 1” Diameter parallel keyed shaft
  • SAE B 2 hole mounting flange
  • Front pump displacement: 41 cc/rev (41L/Min per 1000 rpm)
  • Rear pump displacement: 29 cc/rev (29L/Min per 1000 rpm)
  • Combined 2” SAE flange inlet
  • Front pump outlet: 1 1/16”-12 UNF threaded
  • Rear pump outlet: 7/8”-14 UNF threaded
  • Maximum working pressure on front pump: 250bar
  • Maximum working pressure on rear pump: 275 bar
  • Max. Input shaft torque: 325 Nm

Weight

  • 28KG

Replaces the following JCB part numbers

  •   919/66700    919/71700
